MTN轮胎式移动破碎筛分站

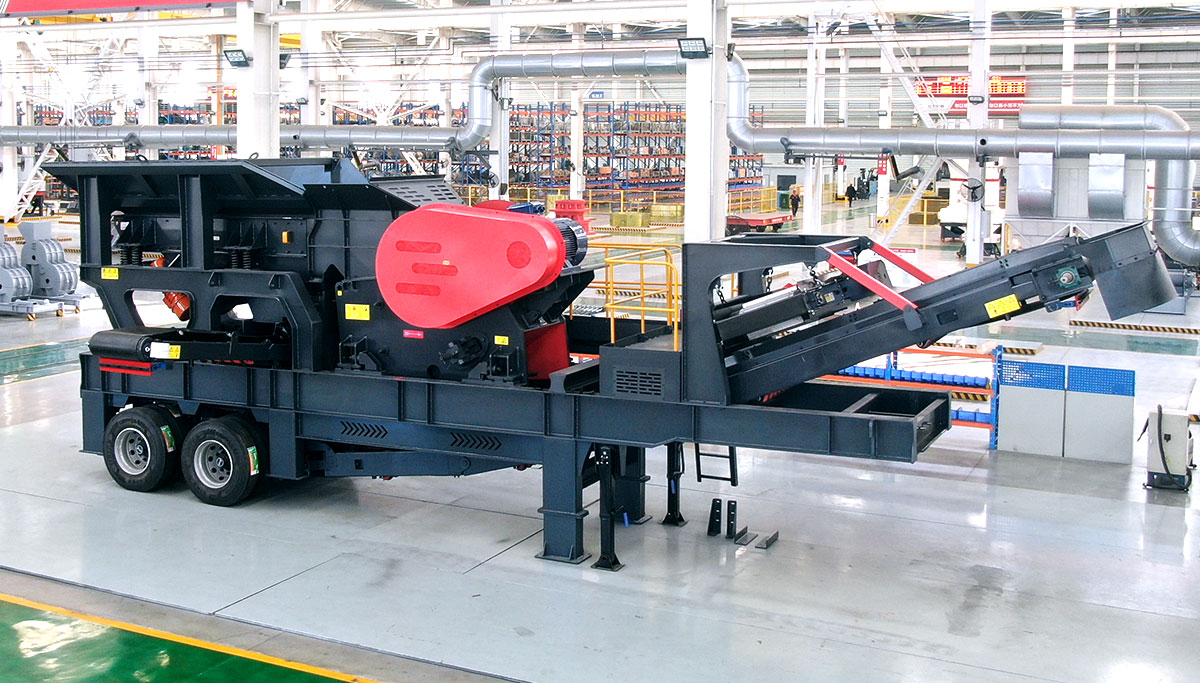

MTN轮胎式移动破碎筛分站主图
  • 2HX2165

    车载设备

  • 50-300(t/h)

    生产能力

  • 15500x2900x420(mm)

    运输尺寸

技术参数

Technical parameters
系列 标准型号 车载设备 车载设备 处理量(t/h) 运输尺寸(mm)
四组合移动站 MTN100Y-2 GZD850X3000/2YK1545 HD72/GYS300 50-100 15000x2650x4500
MTN100Y-3 GZDT0835/3ZD1548 HDX86/SC100F1 50-100 17500x2500x4000
MTN150Y-3 GZDT0835/3ZD1548 HDX86/SC160F1 70-150 17500x2500x4000
MTN150R-3 GZDT0835/3ZD1548 HDX86/CI1110 60-150 17500x2500x4000
粗碎移动站 MTN96 GZDT9538 CJ96 70-200 13000x2950x4250
MTN98 GZDT9538 HDX98 80-200 13000x2950x4250
MTN106 GZDT1145A CJ106 90-300 14000x3000x4400
MTN110 GZDT1145A HDX110 120-300 14000x3000x4400
MTN1213C GZDT9538 CI1213 80-200 13000x2950x4250
MTN1316C GZDT1145A CI1316 100-300 14000x3000x4400
中细碎移动站 MTN300 - HPM300C1 100-200 15500x2900x4200
MTN400 - HPM400C3 150-300 16500x3100x4300
MTN250 - SC250F1 90-200 16500x3100x4300
MTN1213 - CI1213 80-200 16000x2900x4300
MTN1316 - CI1316 100-300 16500x3100x4500
MTN0926 - HVI0926 85-200 16500x3100x4300
MTN1040 - HVI1040 120-300 16500x3100x4400
筛分移动站 MTN1865-3 - 3ZD1865 65-200 14500x2900x4000
MTN2165-3 - 3ZD2165 85-300 15000x2900x4400
中细碎筛分移动站 MTN300S-3SII 3ZD1865 HPM300C1 100-200 15000x3000x4000
MTN300S-3 3ZD2165 HPM300C1 100-200 15000x3000x4000
MTN400S-3 3ZD2165 HPM400C3 150-300 15000x3000x4000
MTNG400S-3SII 3ZD1865 GYS400C1 100-200 15000x3000x4000
MTNG400S-3 3ZD2165 GYS400C1 100-200 15000x3000x4000
MTN250S-3 3ZD2165 SC250F1 90-200 15000x3000x4200
MTN1213S-3 3ZD1865 CI1213 80-200 15000x3000x4200
MTN1316S-3 3ZD2165 CI1316 100-300 15000x3000x4200
MTN0926S-2 2ZD1865 HVI0926 85-200 18000x3000x4200
MTN1040S-2 2ZD2165 HVI1040 120-300 18000x3000x4200
三组合移动站 MTN1213-III GZDT9538/3ZD1865 CI1213 80-200 18200x2800x4350
MTN1316-III GZDT1145A/3ZD2165 CI1316 100-300 18200x3000x4200
MTN1410-III GZDT9538/3ZD1865 PCZ1410 80-200 18200x2800x4200
MTN1612-III GZDT1145A/3ZD2165 PCZ1612 100-300 18200x3000x4200

注：产量根据不同物料，进料粒度等因素其结果将有所不同

系列 标准型号 处理量
(t/h) 		运输尺寸
(mm)
四组合移动站 MTN100Y-2 50-100 15000x2650x4500
MTN100Y-3 50-100 17500x2500x4000
MTN150Y-3 70-150 17500x2500x4000
MTN150R-3 60-150 17500x2500x4000
粗碎移动站 MTN96 70-200 13000x2950x4250
MTN98 80-200 13000x2950x4250
MTN106 90-300 14000x3000x4400
MTN110 120-300 14000x3000x4400
MTN1213C 80-200 13000x2950x4250
MTN1316C 100-300 14000x3000x4400
中细碎移动站 MTN300 100-200 15500x2900x4200
MTN400 150-300 16500x3100x4300
MTN250 90-200 16500x3100x4300
MTN1213 80-200 16000x2900x4300
MTN1316 100-300 16500x3100x4500
MTN0926 85-200 16500x3100x4300
MTN1040 120-300 16500x3100x4400
筛分移动站 MTN1865-3 65-200 14500x2900x4000
MTN2165-3 85-300 15000x2900x4400
中细碎筛分移动站 MTN300S-3SII 100-200 15000x3000x4000
MTN300S-3 100-200 15000x3000x4000
MTN400S-3 150-300 15000x3000x4000
MTNG400S-3SII 100-200 15000x3000x4000
MTNG400S-3 100-200 15000x3000x4000
MTN250S-3 90-200 15000x3000x4200
MTN1213S-3 80-200 15000x3000x4200
MTN1316S-3 100-300 15000x3000x4200
MTN0926S-2 85-200 18000x3000x4200
MTN1040S-2 120-300 18000x3000x4200
三组合移动站 MTN1213-III 80-200 18200x2800x4350
MTN1316-III 100-300 18200x3000x4200
MTN1410-III 80-200 18200x2800x4200
MTN1612-III 100-300 18200x3000x4200

注：产量根据不同物料，进料粒度等因素其结果将有所不同
